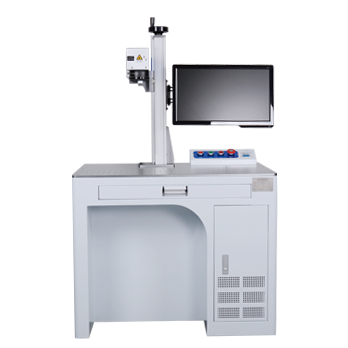

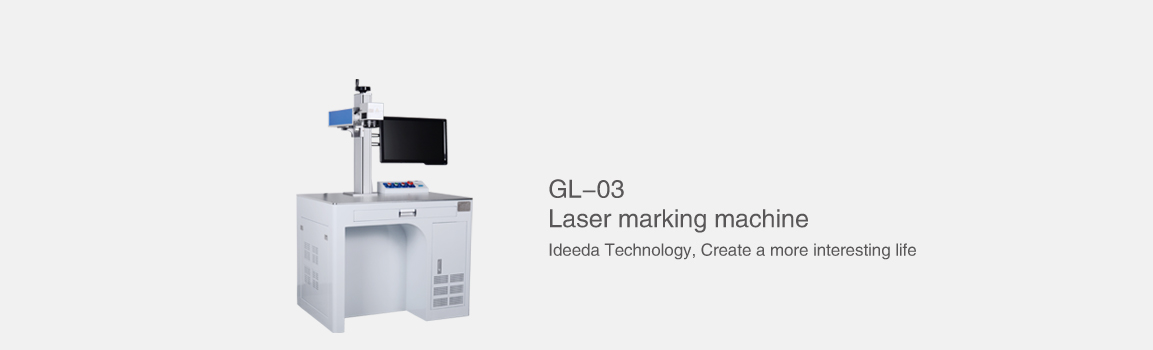

- Model GL-03
- Type Fiber Series
- Width 21 cm
- Height 53 cm
- Weight 26 kg
Category
-
3W
Laser Power
Laser Marking Parameters
-
Laser
New patent design of high-end laser source
-
Adjustable Frequency
1KHZ - 100KHZ
-
Average Output Power
3W
-
Laser Wavelength
532nm
Galvanometer Parameters
-
Max Processing Speed
7000mm/s
-
Repositioning accuracy
0.003mm
-
Best Resolution
0.001mm
Optical Output Characteristics
-
Scope of Marking
F=160mm，110×110mm
-
Height of Minimum Character
0.25mm
-
Minimum Line Width
0.015mm
System Property
-
System Power Supply
200W/AC220V/50HZ
-
Lift Distance
400mm
-
Working Environment
Temp：0℃ - 50℃，Humidity：5% - 90%
